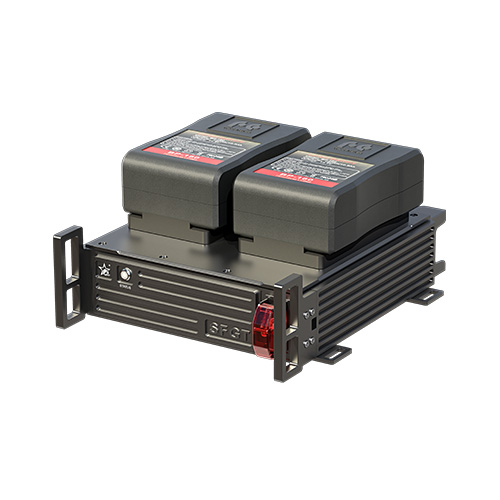

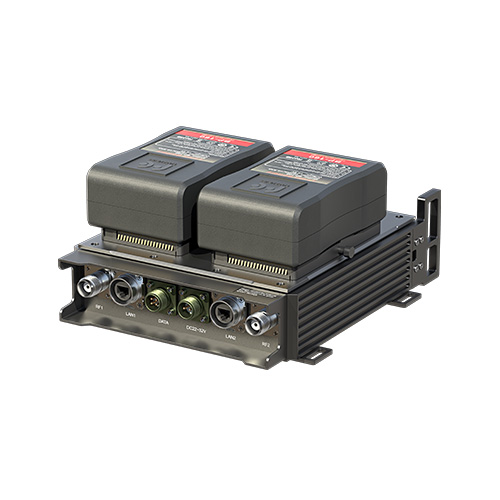

Potable Wireless IP MESH Receiver SFGT-MS2000B
​SFGT-MS2000B is a portable ground receiver for drones. It adopts a full IP design concept and fully supports transparent transmission of all types of data. It integrates multi-waveform, ultra-wideband and high-speed frequency hopping technology to build a solid core advantage and has excellent anti-interference ability.
Contact
Product Introduction

SFGT-MS2000B is a portable ground receiver for drones. It adopts a full IP design concept and fully supports transparent transmission of all types of data. It integrates multi-waveform, ultra-wideband and high-speed frequency hopping technology to build a solid core advantage and has excellent anti-interference ability.



Product Features

1. Suitable for long-distance wireless video and data transmission;

2. Support non-line-of-sight (NLOS) mobile transmission;

3. Good diffraction and anti-interference performance;

4. Comes with battery, long working time.





Product Specification


Transmission Characteristics

Operating frequency

300MHz- 6GHz (Customizable)

Working power

5W

Transmission bandwidth

1/2/5/10/20/40Mhz (Customizable)

Networking Node

Supports 128 nodes

Transfer rate

Peak 90-120Mbps

Transmission range

70km

Data Characteristics

Interface

LAN*2 DATA*1 (Customizable)

Sensitivity

-106dBm

Baud rate

115200bps (Adjustable)

Encryption

AES128/AES256/User defined

Power Characteristics

Operating voltage

DC12V

Working hours

4-5 hours (with battery)

Physical Properties

Operating temperature

-30~55°C

Size

230 * 2 70 * 9 0mm

Weight

3.8 Kg (without battery) 4kg (with battery)
