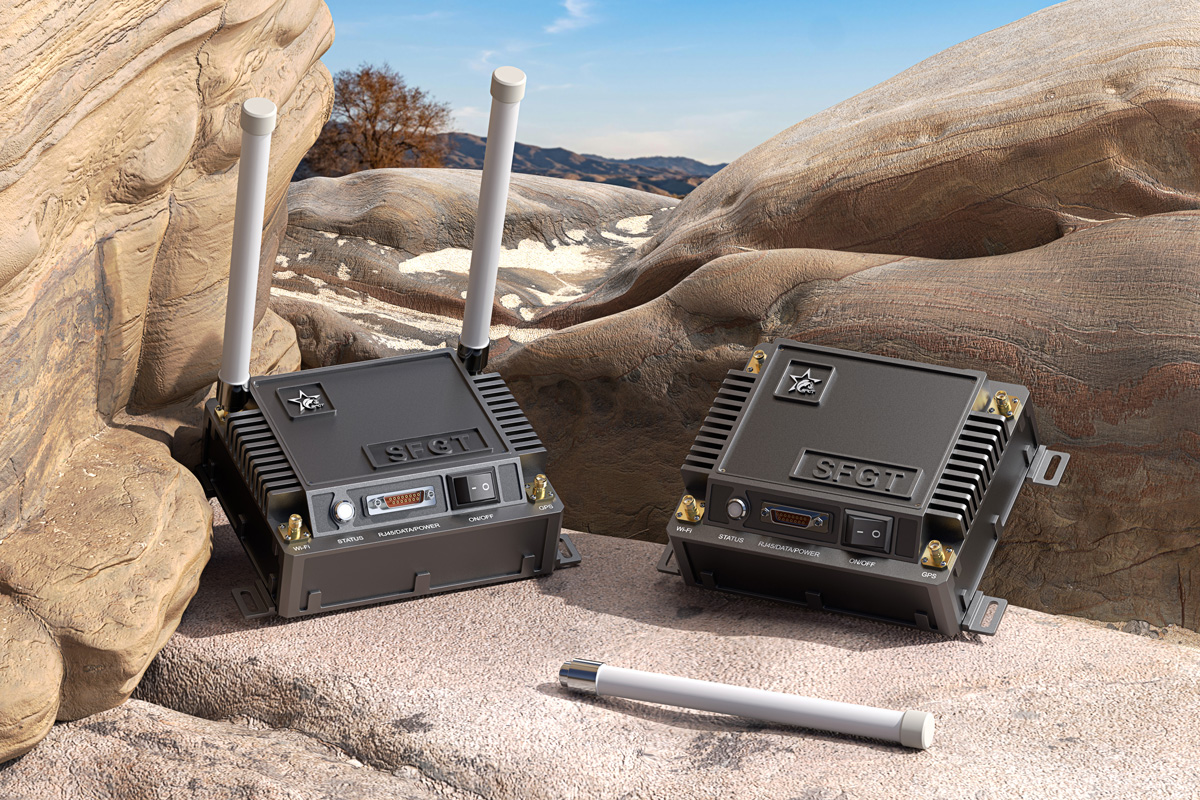

The SFGT-MS0303RP is a 3*3W MIMO IP MESH device in a ruggedized, rainproof, and shockproof housing. It is well-suited for long-rangeand high-volume data flow airborne missions. Larger power configurations, such as a 4x4W MIMO IP MESH, can also be customized as per requirements.
The system uses FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping mesh topology, supporting data and video in point-to-point, point-to-multipoint, or multipoint-to-multipoint configurations.
1. Adopt FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping and other technologies
2. Do not rely on base stations, able to form a centerless wireless broadband network efficiently and quickly
3. Provide IP interface to realize interconnection and interworking with other IP devices
RF Features | |
Frequency Range | 600MHz-8Ghz (Customizable) |
RF Power | 3*3w（Adjustable） |
Modulation | COFDM |
Constellation modulation | BPSK/QPSK/16QAM/64QAM |
FEC | 1/2，2/3，3/4，5/6 |
RF bandwidth | 10/20/40MHz （Adjustable）
|
Sensitivity | -102dBm@1MHz |
Transmission Rate | Peak 100/200Mbps |
Transmission Distance | ＞50KM（LOS） |
Networking Capacity | 32/64/128 Nodes (Customizable) |
Electric Features | |
Working Voltage | DC12-22V |
Working Current | 1.5A(Typical Value) |
Data Features | |
Video Input Format | Support IP Video Input |
External Ports | RJ45, Audio Ports (Customizable) |
Control Function | Support Network Management |
Encryption | AES128/256 or User Defined |
Built-in Module | Beidou/GPS |
Physical Features | |
Protection Grade | IP65 |
Working Temperature | -30℃ ~ +55℃ |
Storage Temperature | -40℃ ~ +70℃ |
Dimension | 200×133×58mm |
Weight | Aprx. 1.95kg |
