Hawkeye Helmet Camera
Hawkeye Helmet Camera can be directly installed on a standard Picatinny track bracket, and used with the Handheld IP mesh.
Contact
Product Introduction

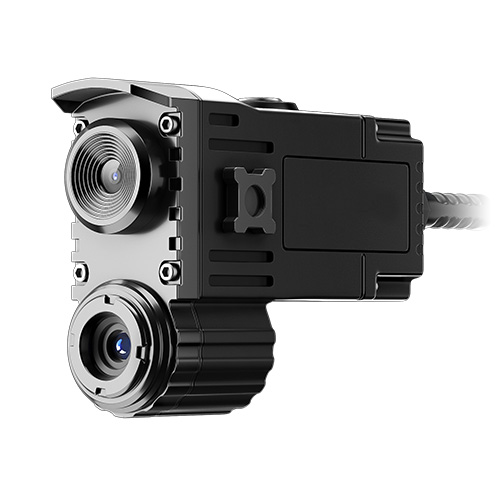

Hawkeye Helmet Camera is a high-definition camera. It can be directly installed on a standard Picatinny track bracket, and used with the Handheld IP mesh.The power supply of the camera is provided by the radio and does not require an external power supply. The camera has excellent performance in low light conditions, and is equipped with built-in infrared or white LED lighting. It supports variable video resolution, from 1920x1080 to 320x240, and the parameters can be configured through a web browser interface.




Product Features
  1. Full HD, maximum resolution 1080P/30FPS

  2. Military-grade protection (IP67)

  3. Standard Picatinny rail installation

  4. Low illumination, B/W 0.001 lux

  5. 940nm Infrared supplementary lighting, no red glow

  6. H264/H265 encoding

  7. Compatible for use with the Handheld IP mesh, powered directly from the radio's battery, no need for additional battery or cabling.


Product Parameters

Image sensor

1/2.Progressive Scan CMOS

Sensitivity

Color 0. 005 Lux, BW 0. OOlLux

Camera

2.8UM pinhole

Field of View

105° ±5%

Auxiliary Lighting

940nm 2W

Coding

H.265/H. 264 / MJPEG

Bitrate

32 Kbps~8Mbps

Audio Encoding

G. 711/G. 726/PCM/AAC

Audio Bit Rate

64Kbps(G.711)/16Kbps(G. 726)/16-64Kbps(AAC)



Internet Protocol

TCP/IP, ICMP, HTTP,, FTP, DHCP, DNS,RTP,RTSP,RTCP,NTP,,SMTP,SNMP,IGMP,802.1XUDP
RTP, RTSP, RTCP, NTP,, SMTP, SNMP, IGMP, 802,1XUDP

ONVIF (PROFILE S, PROFILE G)

connector

10 pin circular connector, waterproof

Temperature/ Humidity

-25C~60C;  95%

Power Supply

DC12V±20%

Power Consumption

DC12V: 2W Max(LED off), 3. 8WMAX(LED on)

Protection Level

IP67

Dimension

61x46x22

Weight

92g
