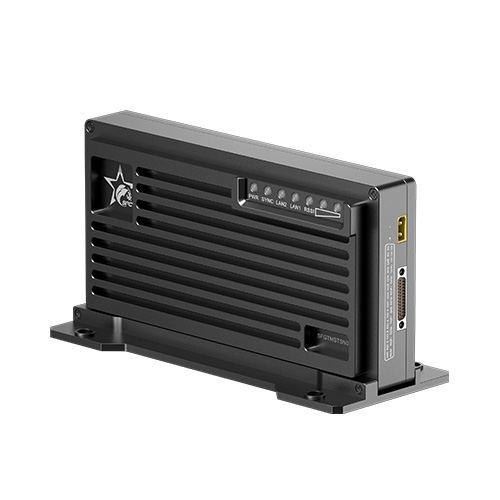

FHSS Wireless Transceiver for Long Range UAV SFGT-HF0202UT
With its advanced IP star networking high speed hopping frequency technology, SFGT-HF0202UT is particularly valuable in challenging environments. ​
Contact
Product Introduction

SFGT-HF0202UT, with its advanced IP star networking high speed hopping frequency technology, is a key asset for UAVs. This technology is crucial in maintaining robust video and data communication capabilities. Its ability to counteract disruptions such as Radio Frequency (RF) jamming is a significant advantage. This feature ensures the maintenance of legitimate channels and reduces the degradation of the received signal-to-interference noise ratio (SINR). SFGT-HF0202UT is particularly valuable in challenging environments to maintain the functionality of UAVs and ensure the long range of the telemetry and control link.



Product Features

1.  For long range wireless video, data transmission;

2.  Support non line of sight (NLOS) mobile transmission;

3.  Good diffraction and anti-interference;

4.  Small dimension, light weight, easy to install;

5.  Highly integrated modular combination design;

6.  RJ45/TTL/RS232/RS485/RS422/SBUS (Customizable)

7.  Software defined, easy webpage operation





Product Specification

Transmission feature

Transmitting power

2w (Customizable)

Frequency

300MHz-6Ghz

(Customizable)

Bandwidth

10M

Nodes

32 nodes (Customizable)

Transmission range

>50km

Power supply

Operation voltage

DC12V

Transmission rate

15Mbps@10M

Signal feature

Interface

RJ45, serial port, SBUS (Customizable)

Sensitivity

-106dBm

Baud rate

115200bps(Adjustable)

Resolution

1080P, 720P

Encryption

AES128/AES256/user defined

Physical feature

Operation temp.

-30°C ~ +55°C (Customizable)

Storage temp.

-40°C ~ +70°C (Customizable)

Size:

140*78*46mm(Customizable)

Weight

Aprx 550g (Customizable)
