The SFGT-FD100VCS is a powerful, full-duplex video, data, and voice wireless transmission communication system, primarily operating over Ethernet and serial ports. The SFGT-FD100VCS IP transceiver adopts the latest COFDM modulation technology from Shenzhen Safe Guard (SFGT), as well as FDD (frequency division duplexing) technology. The downlink and uplink frequencies of the SFGT-FD100VCS Ethernet IP transceiver are adjustable and customizable to meet different users' requirements.

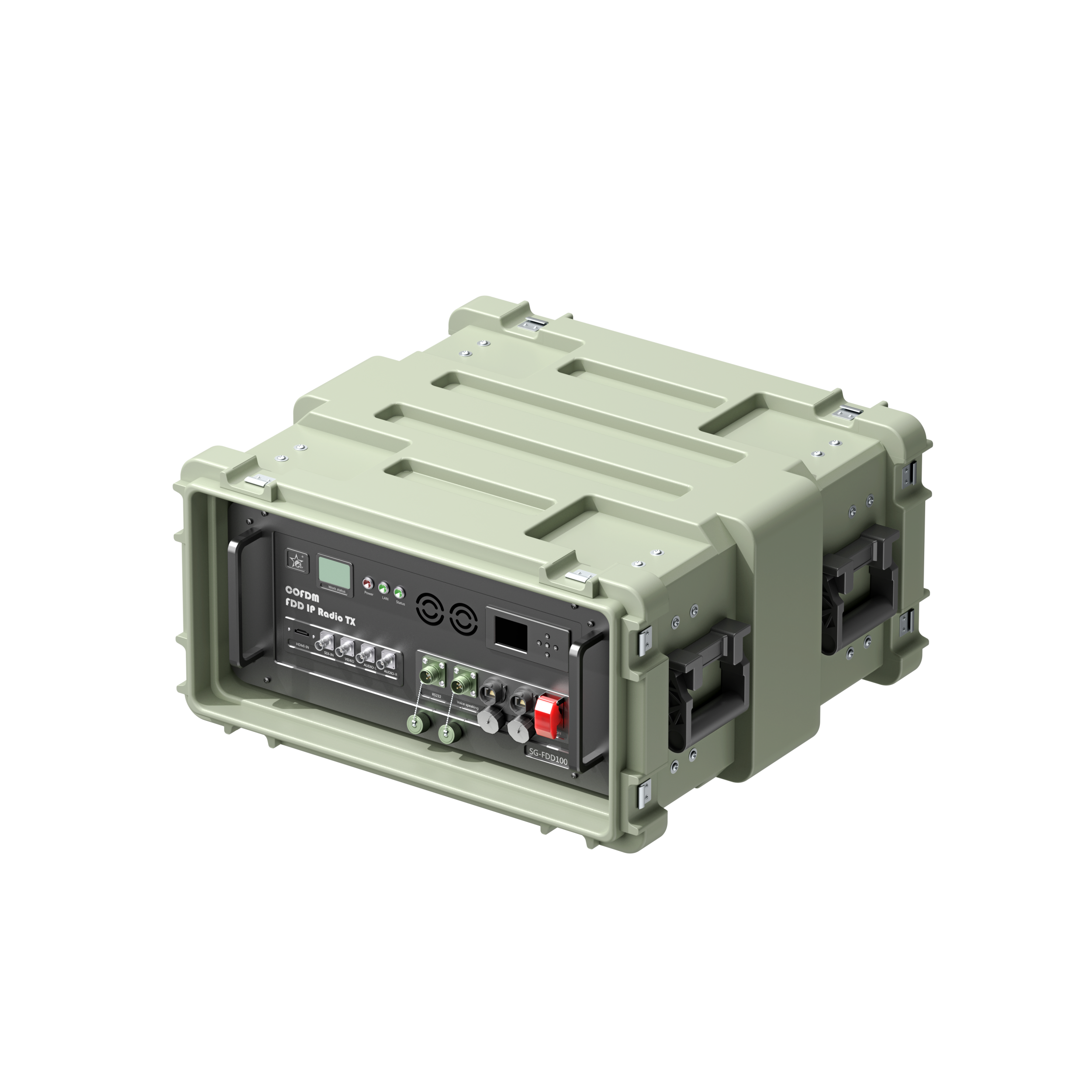

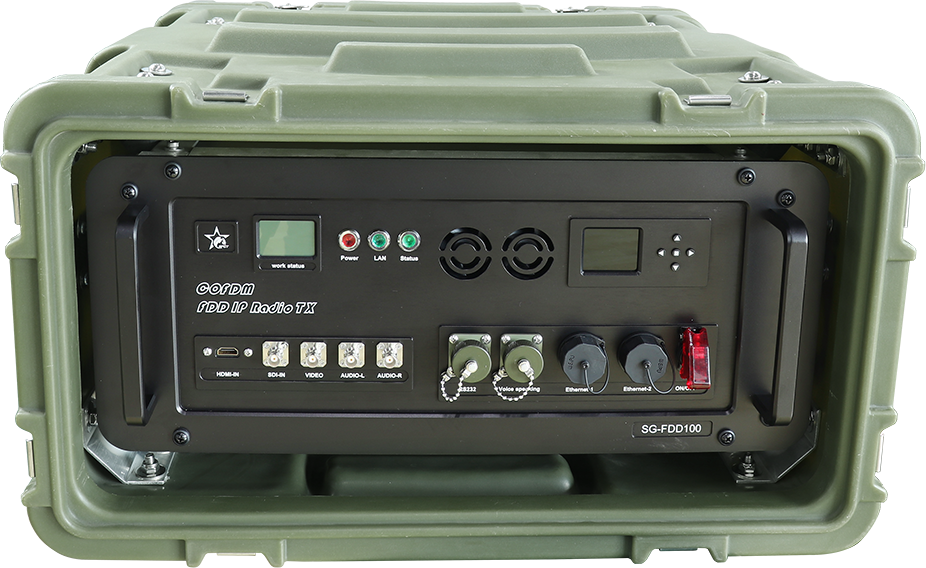

Designed in a 4U rack case with an outer shock-proof box, the SFGT-FD100VCS IP transmission system has a high 100W RF power output, which can achieve ultra-long ranges of up to 50km in non-line-of-sight (NLOS) and 100km in line-of-sight (LOS) on the ground. The SFGT-FD100VCS IP video transmitter is an open, customizable solution, with the capability to embed H.265 video compression codecs for connecting digital and analog video cameras with HDMI, SD-SDI, HD-SDI, and CVBS ports.
COFDM modulation
Work well in NLOS fast moving condition
Low latency and great data send from end to end
Transparent IP Ethernet and serial data sync telecommunication
RF Fullband/Narrowband/Multiband (1/2/4/8MHz) available
Military grade dynamic AES encryption 128 bits or 256 bits
Model | SFGT-FD100VCS |
Working voltage | DC28V (AC110-240V) |
Working current | 14.5A/28V |
TX output frequency | 300MHz-8GHz (Customizable) |
RX output frequency | 300MHz-8GHz (Customizable) |
RF bandwidth | 1/2/4/8MHz |
RF power output | 50dBm (Customizable) |
Encryption/decryption mode | AES128 bits or 256 bits (user-defined password) |
Modulation | COFDM 2K |
Transfer rate | 2x30 Mbit/s_RJ45 115200bps_RS232 |
RF connector | N type |

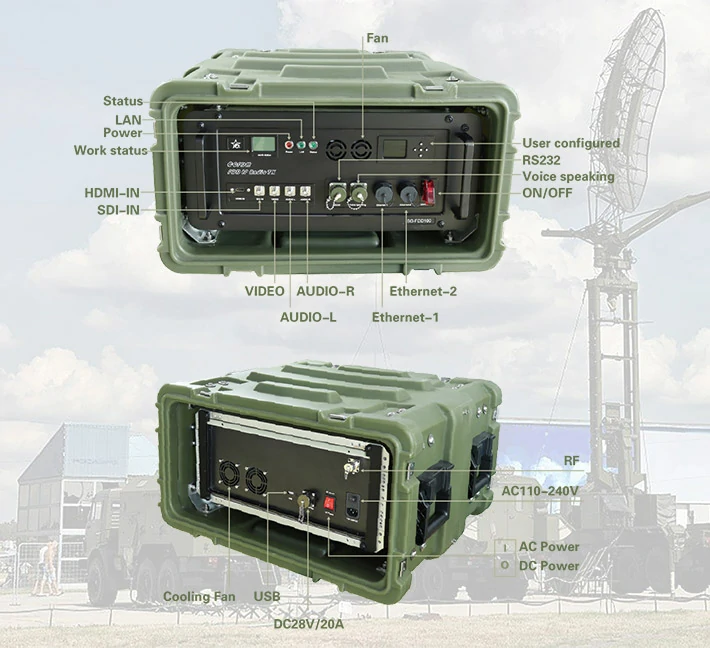

Interface | RJ45*2/RS232/LCDControl/TTL |
Dimension | Standard 4U case (military grade safety protection box can be added) |
Transmit distance | 30-50km NLOS /50-100km LOS |
