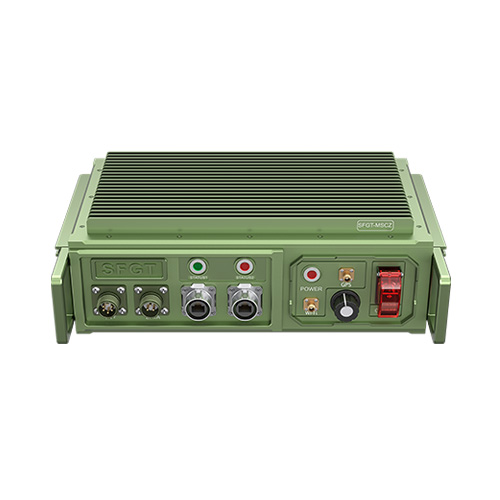

The COFDM IP MESH adopts FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping technology as its core, it can provide a seamless and highly secure private network even in non-line-of-sight (NLOS) and fast moving conditions. This network can be configured in chain, star, or random topologies.
With its self-managing, self-healing, and secure data streaming capabilities, the rugged IP MESH helps users control military grade unmanned vehicles more quickly, safely, and systematically .
Adopt FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping and other technologies
Do not rely on base stations. Capable of forming a decentralized wireless broadband network efficiently and quickly
Provide IP interface to realize interconnection and interworking with other IP devices
RF Features | |
Frequency Range | 300Mhz-8Ghz (Customizable) |
Modulation | OFDM/LTE/FPGA (optional) |
Constellation modulation | BPSK/QPSK/16QAM/64QAM |
RF bandwidth | 1/2/5/10/20/40MHz |
FEC | 1/2，2/3，3/4，5/6（Optional） |
Transmission Rate | Max 100MBPS |
Transmission Distance | 10-20KM LOS/5-10KM NLOS |
Networking Capacity | 32/64/128 Nodes (Customizable) |
Electric Features | |
Power supply | DC24-28V/2.5A |
Data Features | |
Video Input Format | Support IP Video Input |
External Ports | RJ45, TTL, PTT |
Control Function | Support Network Management |
Encryption | AES128/256 or User Defined |
Built-in Module | Wi-Fi/GPS/Beidou |
Sensitivity | -102db(Customizable) |
Dimension | 320*210*110mm (Customizable) |
