COFDM-FDD 5W Manpack Ethernet transceiver SG-FDD5W
Code: SG-FDD5W
Original: 0.00
Detail




SG-FDD5W is a new COFDM modulation digital transmitter receiver integrated with using Frequency-division duplexing(FDD) technology,designed with dual -mode rf transceiver architecture and system

which operate at different carrier frequencies ideal for long range communication in network solution .

Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications .With highly integrated embedded design, super-linear digital predistortion RF design and network,modulation and demodulation, full-band RF output All-in-One which help you complete the design of long-distance wireless links more conveniently and quickly.

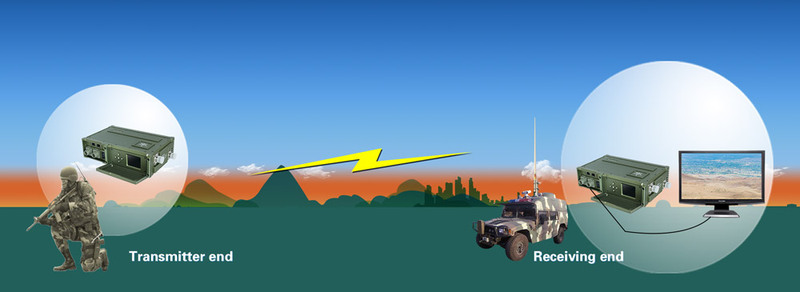

It is mainly used for multi channel video transmission RS232 signals, unmanned control systems

with high standards, and intelligent control equipment wireless telecommunication.


COFDM-FDD 5W Manpack Ethernet transceiver SG-FDD5W

COFDM-FDD 5W Manpack Ethernet transceiver SG-FDD5W


Feature:

l COFDM modulation,different carrier frequencies technology

l Low latency and great data send from end to end.

l great transfer rate for uplink and downlink

l transparent IP ethernet and serial data sync telecommunication

l Dual frequency is ideal for IP solution long-distance required

l Dynamic AES encryption 128bits

l Narrowband 1M/2M/4M/8MHz available

l Work well in NLOS fast moving condition

l Integrated design,super linear

l Small in size,lightweight and low consumption

l Simple operation,User easy to set the related parameters by LCD panel with keypads


Specifications:

Model

SG-FDD5W

Power supply

DC12V/2.3A

TX output frequency

555MHz (can be customized 300-3300MHz),step in 1MHz

RX output frequency

595MHz (can be customized 300-3300MHz),step in 1MHz

RF bandwidth

1/2/4/8MHz

RF power output37dBm

Encryption/decryption mode

AES128 bits(user-defined password)

Modulation

COFDM 2K

Transfer rate

2x30 Mbit/s uplink and downlink

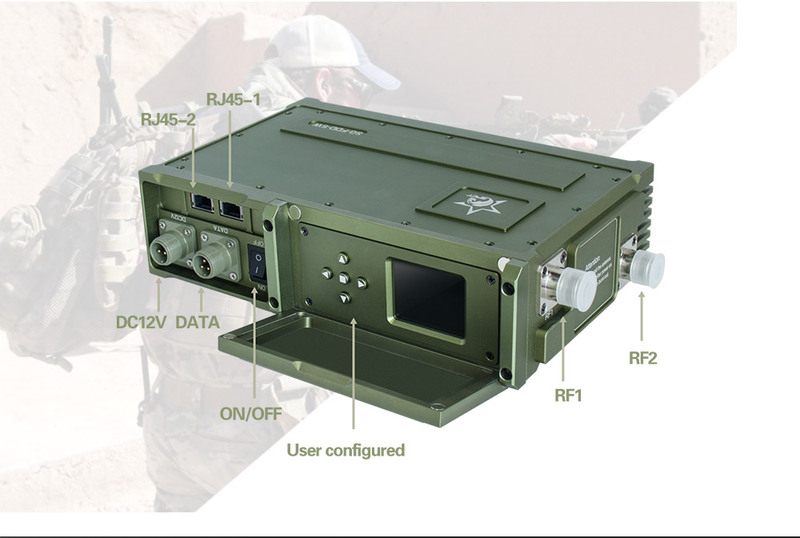

RF connector

N type *2

Ethernet

Standard RJ45 port *2

Serial port

RS232/RS485 serial port

Baud rate

115200bps maximum

Two way audio

Aviation plug

LCD panel with keypad

Easy to set the related parameters

Dimension

200*130*60mm

Weight

3kg

Transmit distance

2-5km NLOS /5-10km LOS
























COFDM-FDD 5W Manpack Ethernet transceiver SG-FDD5W
