Dual polarized Plate Antenna
Code: SG-1400BP65D12x2
Original: 0.00
Detail


Bidirectional dual polarized plate antenna SG-1400BP65D12x2


Application

● FDD LTE Ultra wideband (UWB)

Base station antenna

Point to multipoint antenna



Features

Good environmental adaptability

Horizontal and vertical dual polarization

broadband technology design

Adjustable angle code


plate antenna.jpg               dual polarized plate antenna.jpg



Installation

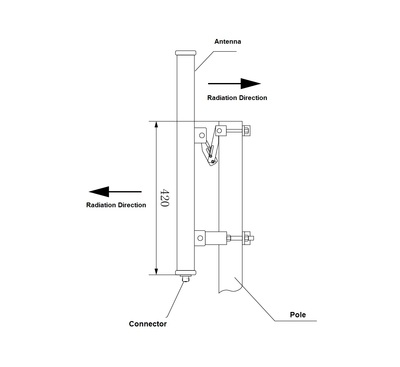

As shown in the figure, install the antenna on the support pole. After adjusting the azimuth angle, lock the nuts in the lower part of the antenna and adjust the pitch angle by the screw position of the mounting kits on the upper part of the antenna,then lock the nuts.

Attention: The support poles height can not be higher than the height of the installation, otherwise it will affect the antenna effect.



Specifications


Frequency range

 1440±40MHz

Gain

  12dBi

Horizontal Beamwidth

    65°

Vertical Beamwidth

    15°

Front-to-back ratio

     ≥25

Insulation

     ≥28

Electrical Down tilt

     0°

Polarization

     ±45°

Maximum Power

    100W

Input resistance

    50Ω

Connector

     2x NK

Dimension

     600*180*80mm

Weight

     3.5kg

Rated Wind Velocity

      60

Work Temperature

     -30~+70℃

Install rod diameter

      Φ50~70
