COFDM SPECIALIST
Mobile video wireless communication

PRODUCT DETAIL
Powerful COFDM Repeater SG-RP20H
Code: SG-RP20H
Original: 0.00
Detail


Full HD Powerful Digital Video repeater SG-RP20H

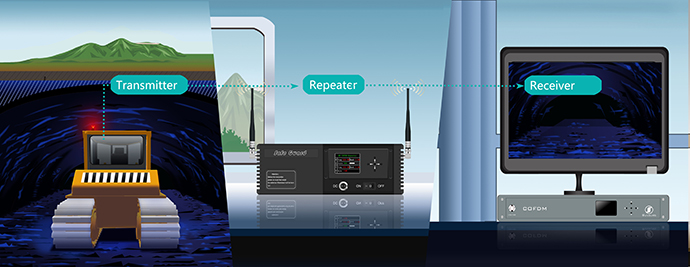

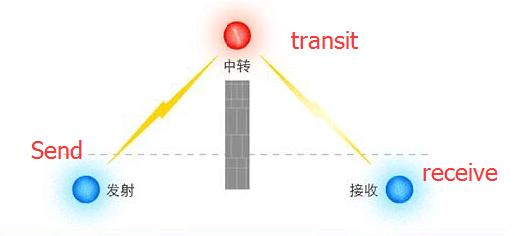

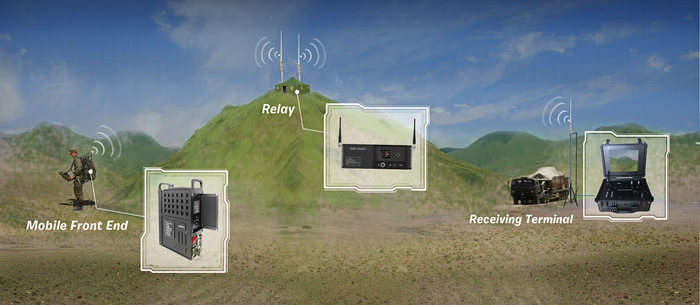

The new HD repeater strongly meets military needs. Available frequency 340-700MHz with super strong capacity of diffraction and penetration. Perfect for NLOS video signal wireless relay communication. Very suitable used in cave,basement such harsh environment with heavy barriers urban environment.



Main features

  ◆ RF Power: 20Watt

  ◆ Power supply: DC12V /4.5A

  ◆ Receive frequency: 200-980MHz (can customize other band)

  ◆ Transmit frequency:330-370MHz (or customize other band)

  ◆ RF bandwidth:4MHz/8MHz

  ◆ Power supply: DC12V (with internal battery,support 3 hrs working time)

  ◆ Power supply requirement: at least 45A

  ◆ Dimensions: 250 * 200 * 80mm

  ◆ Transmission distance: 3-5 km NLOS ,15km LOS
