Vehicle long range COFDM Transmitter  SG-30H
Code: SG-30H
Original: 0.00
Detail


The vehicle mountable wireless video transmitter SG-30H is the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially,  the latest technologies  ofCOFDM modulation and H.264 video compression ensure high quality of NLOS (non line-of-sight) transmission.This system is high-powered and can realize longer transmission range with stable, real-time and high definition images.

Vehicle COFDM video TX.jpg

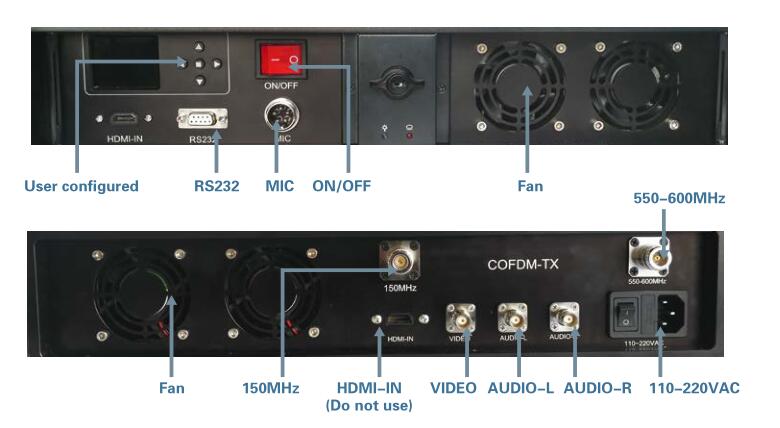

About the outlook,can be in Rack mount or waterproof housing.


Features:

◆ Inset high-powered amplifier and cooling fans.

Stable transmission with omni-directional antenna.
COFDM modulation and H.264 video compression.
Adjustable working frequency, LCD board displays the parameters
Great security by encryption of AES 128 bit
Rack mountable design, can be installed in a car or helicopter.
Good transmission with high definition image and stereo audio.
Stable transmission in NLOS(non line-of-sight)and high speed mobile condition.

The transmission range is 50-100km in NLOS and more than 100km in LOS(line-of-sight)condition.


Specifications:

Frequency

300MHz-399MHz,400-500MHz (customized),

Bandwidth

2/2.5/4/8MHz adjustable

RF Power Output

30W/50W/80W/100W (option)

video Impedance

50 Ω

RF Interface

N female

Modulation

COFDM

Constellation

QPSK, 16QAM, 64QAM (optional)

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/4, 1/8, 1/16, 1/32

Coding Mode

MPEG-2 / MPEG-4 /H.264 (optional)

Audio Input

Stereo

Antenna Interface

BNC x1

Audio Input

BNC x2

Video Input

1Vp-p~1.2Vp-p@75Ω

Encryption:

AES 128 bit

Temperature

-25℃~ +45℃

AC Input

DC12/DC28V/DC24V ,AC110V AC220V

Dimension

490*450*90mm (2U Aluminium alloy box)

Weight

9kg


Specifications:

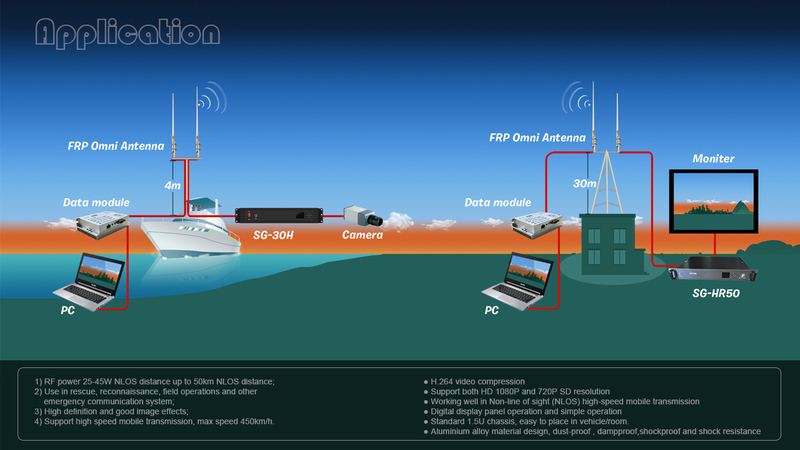

This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center. Suitable for Car to car,boat to boat,vehicle to fixed station,boat to fixed station,helicopter to fixed station  Which can be also as a repeater,can go up to 100km LOS/NLOS distance while working with high gain omni-directional  antennas.
