20W COFDM-FDD Radio for Vehicle/Vessel
Original: 0.00
Detail


20W COFDM-FDD Radio for Vehicle/Vessel application

FDD-COFDM, using COFDM multi carrier modulation and demodulation technology is a new type of full duplex communciation system used in NLOS mobile transmission application.Supporting non-line of sight distance transmission.It uses transparent IP data to provide a balance and stable high-speed data rate up link(30Mbit/s)and downlink(30Mbit/s).


SG-FDD20W model is a high power Network IP radios based on COFDM modulation.It's special designed for Vehicle or Unmanned control vehicle in need for robust video wireless communcation and data control through IP network.

Tactical wireless COFDM digital video data Ethernet transceiver


Feature:

COFDM modulation,FDD technology

Great transfer rate for uplink and downlink

Transparent IP Ethernet and serial data sync telecommunication

20W rf power for bi-directional video data communication

Military level 128bit dynamic AES encryption

RF Narrowband 1/2/4/8MHz available

Integrated design,efficient heat dissipation,low consumption

Easy deployment,Simple operation


Specifications:

Model

SG-FDD2W

Power supply

DC28V/6.8A

TX output frequency

675MHz (can be customized 300-3300MHz),step in 1MHz

RX output frequency

715MHz (can be customized 300-3300MHz),step in 1MHz

RF bandwidth

1/2/4/8MHz

RF power output45dBm

Encryption/decryption mode

AES128 bits(user-defined password)

Modulation

COFDM 2K

Transfer rate

2x30 Mbit/s uplink and downlink

RF connector

N type *2

Ethernet

Standard RJ45 port *2

Serial port

RS232 serial port

Baud rate

115200bps maximum

Two way audio

Aviation plug

LCD panel with keypad

Easy to set the related parameters

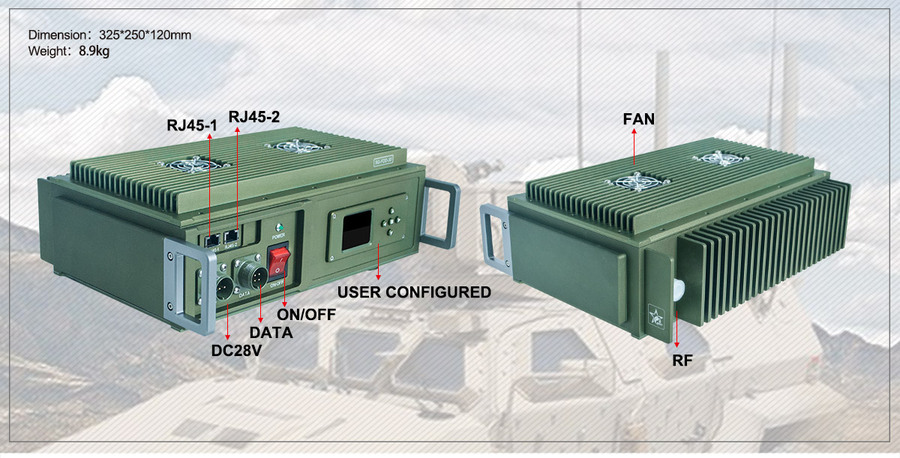

Dimension

320*210*110mm

Weight

8.7kg
Transmit distance

10-20 km NLOS / 20-40km LOS   on ground level




















Tactical wireless COFDM digital video data Ethernet transceiver

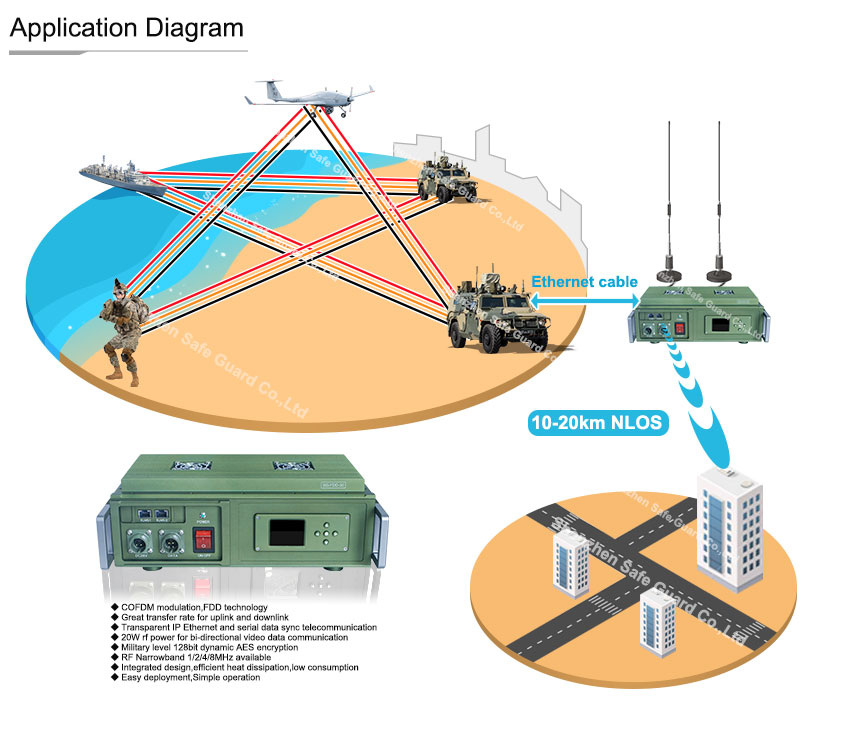

Attention: The above diagram means   our FDD radios can work with IP MESH to get longer distance



The demo
