COFDM-FDD 2W UAV/Robot Ethernet Radios SG-FDD2W
Code: SG-FDD2W
Original: 0.00
Detail


Lightweight FDD Radios for Drones/Robotic

FDD is a new type of full duplx communication technology used in mobile communication systems,uses two separate channels for uplink and downlink transmission.SG-FDD2W model is a lightweight COFDM modulation Network IP radios with 2W rf power output.As its lightweight and small size that meets various drones and robotic required for robust long range video and data control over IP camcorder or Computer connection.

COFDM-FDD 2W UAV/Robot Ethernet Radios SG-FDD2WCOFDM-FDD 2W UAV/Robot Ethernet Radios SG-FDD2W


Feature:

COFDM modulation,FDD technology

Great transfer rate for uplink and downlink

Transparent IP Ethernet and serial data sync telecommunication

Dual frequency is ideal for IP solution need long-distance communication

Dynamic AES encryption 128bits

RF Narrowband 1/2/4/8MHz available

Work well in NLOS fast moving condition

Integrated design,super linear

Small in size,lightweight and low consumption

Easy deployment,Simple operation


Specifications:

Model

SG-FDD2W

Power supply

DC12V/1.5A

TX output frequency

555MHz (can be customized 300-3300MHz),step in 1MHz

RX output frequency

595MHz (can be customized 300-3300MHz),step in 1MHz

RF bandwidth

1/2/4/8MHz

RF power output33dBm

Encryption/decryption mode

AES128 bits(user-defined password)

Modulation

COFDM 2K

Transfer rate

2x30 Mbit/s uplink and downlink

RF connector

SMA type *2

Ethernet

Standard RJ45 port *2

Serial port

RS232 serial port

Baud rate

115200bps maximum

Two way audio

Aviation plug

LCD panel with keypad

Easy to set the related parameters

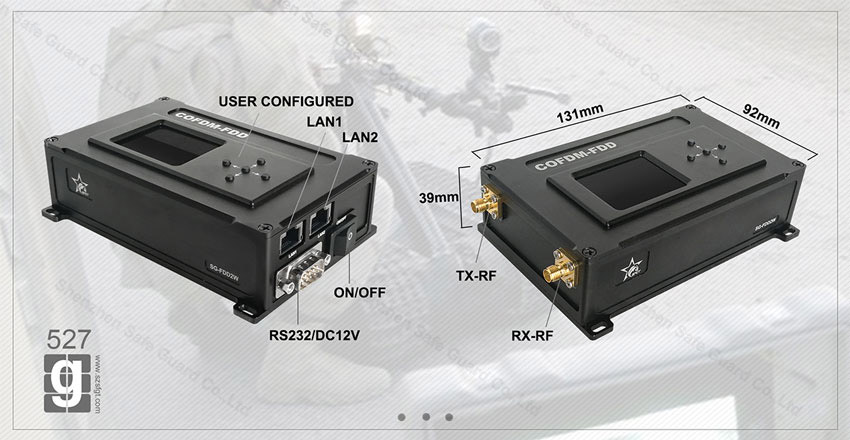

Dimension

131x92x39mm

Weight

527g

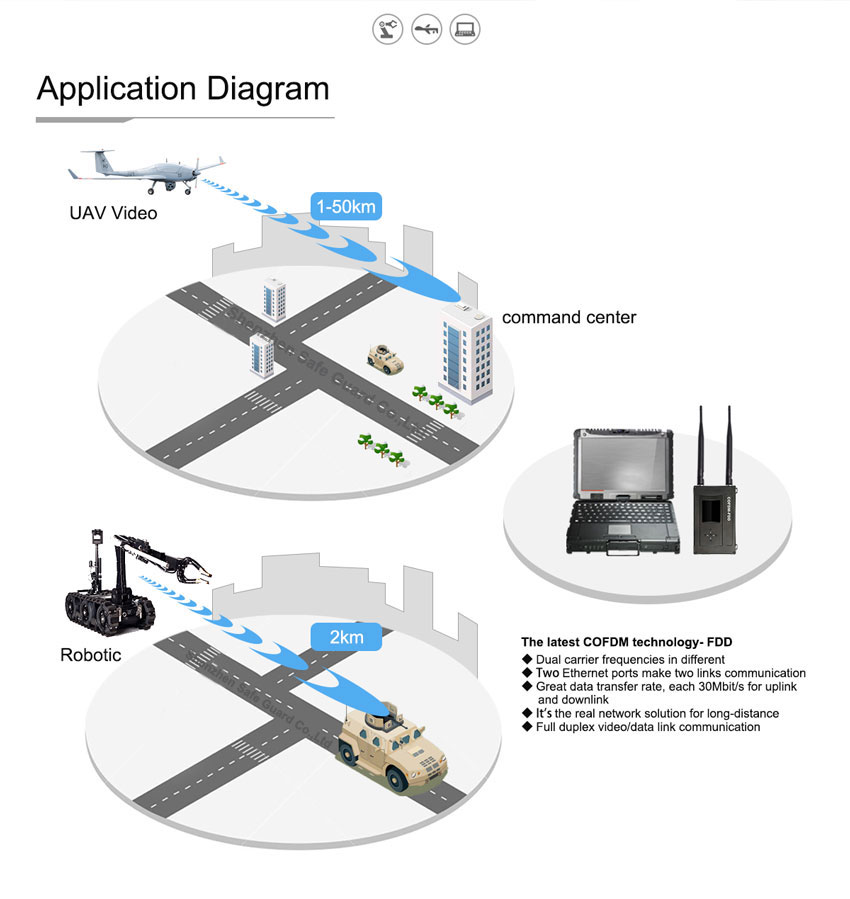

Transmit distance

up to 50km from Drones to ground station

2km NLOS for ground level communication
