1W HD video portable COFDM Transmitter SG-HD153
Code: SG-HD153
Original: 0.00
Detail


1W Micro video HD portable COFDM wireless transmitter

SG-HD153 ultra-low latency H.264 COFDM HD portable wireless video transmitter, adopted the 4th generation multi-carrier modulation technology and highly efficient/ innovative H.264 compression coding. Greatly improve coding efficiency,decrease coding delay, optimize algorithm, anti-bit error rate and improve image quality, which use the lowest bit rate to achieve the best image compression.

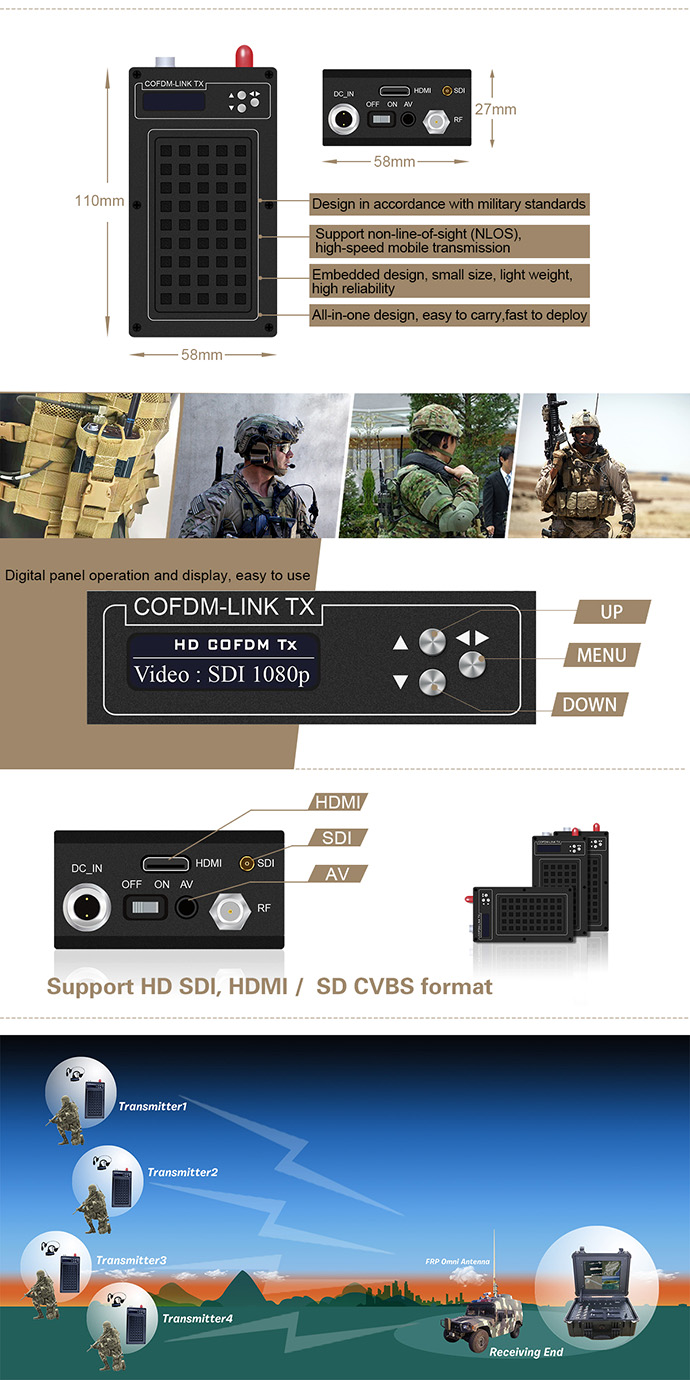

Features

  ●Support HD-SDI, HDMI, SD CVBS format
  ●Embedded design, small size, light weight, high reliability

  ●Design in accordance with military standards
  ●All-in-one design, easy to carry,fast to deploy
  ●Support non-line-of-sight (NLOS), high-speed mobile transmission
  ●Digital panel operation and display, easy to use



Specifications

ModelSG-HD153
Working voltageDC12V
Working current960mA
Video input CVBS external to analog video signal
HDMI interfaceExternal to HD digital video signal, suppory HD 1080p/720p/576/480
HD-SDI interfaceExternal to SDI digital video signal, support HD1080p/720p/576/480
Frequency range300MHz~4.4GHz (optional),gap 1MHz(Other frequency can be customized)
RF bandwidth2/2.5/4/8MHz
RF output power20dBm~32dBm adjustable,gap 1dBm
ModulationCOFDM 2K QPSK
EncryptionAES user-defined

FEC

1/2、2/3、3/4、7/8

Guard interval

1/32、1/16、1/8、1/4

Video coding

H.264

Parameter control mode

Set relevant parameter by LCD FM display panel

Audio input interface

AV

RF connector
TNC(50Ω)
Dimension
110*58*27mm
Weight
300g


Application

This device can be widely used in army, security and protection,fire control,emergency areas etc.
