Internal Battery COFDM Transmitter SG-T5000S
Code: SG-T5000S
Original: 0.00
Detail


Name

2-5W Exclusive Design COFDM AV System

Model

SG-T5000S

Special Features

1) 2-5Watt RF power adjustable;
2) Built-in with battery 2300mA ;
3) More intuitive and natural with a coulobmeter;
4) Popular with users, and was applied to any AV projects.

Introduction

This is an exclusive design COFDM transmitter and receiver. Has a character of low power,small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture, short latency.

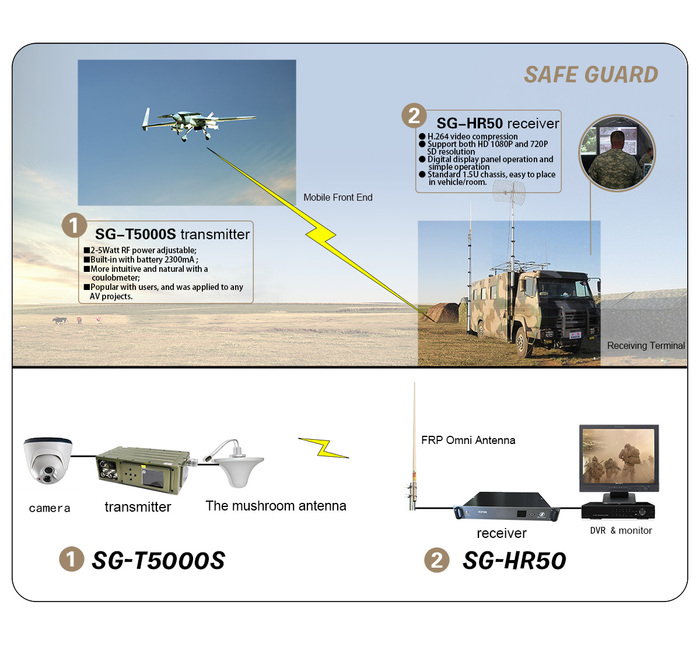

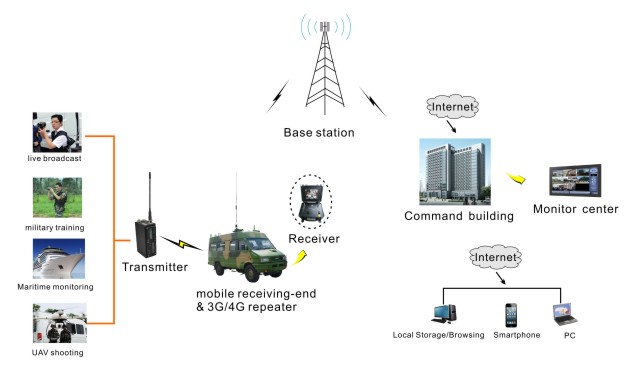

This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.


Transmitter parameters

Frequency

300-4400MHz (optional)

RF output Power

2-5Watt(adjustable)

Voltage

DC12V

Modulation

COFDM

Constellation

QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz

Bandwidth

2/2.5/4/8MHz(optional)

Transfer rate

2/4/6/8Mbps(optional)

FEC

1/2,2/3,3/4,5/6,7/8(optional)

Guard Interval

1/32,1/16,1/8,1/4 (optional)

Video Input

1 line PAL/NTSC analog video

Audio Input

Analog stereo left and right channels

Video Compression

H.264

Data encryption

AES 128/265 bits

Flatness

≤2dB(within full frequency range) ,

≤0.5dB (within 8MHz)

Carrier

2K,8K

Video Signal

1Vp-p@75Ω,NTSC/PAL adaptive

Resolution

720×576(PAL) , 720×480(NTSC)

RF Interface

N(F)

Video Format

PAL/NTSC(self-adaption)

AV Interface

BNC

Case Material

Aluminum alloy, waterproof

Built-in battery

2300mA, 2-3Hrs

Work environment

-30~70°

NLOS Distance

1-3km

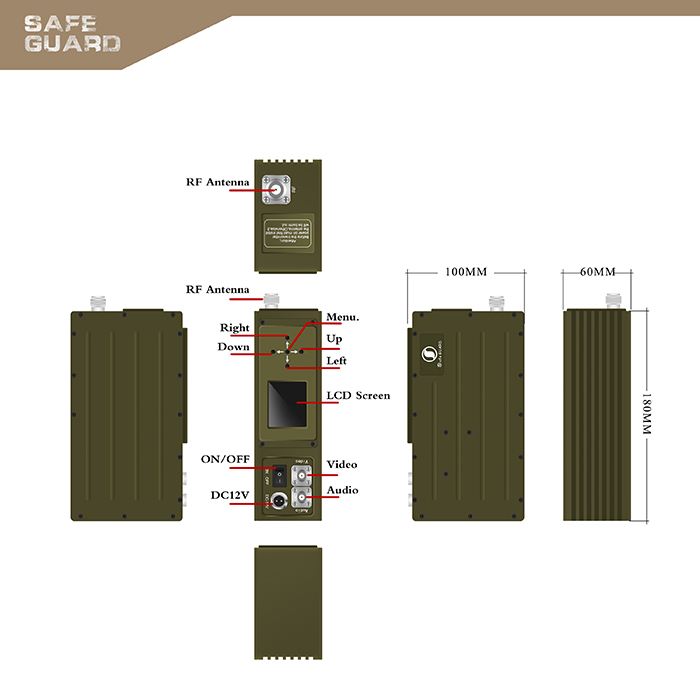

Size

180*100*60mm

Weight

1444g(net weight)
