Yagi Antenna    SG-MA06
Code: SG-MA06
Original: 0.00
Detail


Name:

340MHz 9dBi Yagi Antenna

Model:

SG-YA41009

Special Features:

1) Frequency: 340±10MHz
 2) Bandwidth: 20MHz
 3) Gain: 9dBi
 4) Maximum Input Power: 150W
 5) Size: 1.2m

ReadMe:


Specification

 Model




Frequency Range-MHz

340±10

Bandwidth-MHz

20

Gain-dBi

9

Beamwidth-°

53

F/B ratio-dB

14

VSWR

≤1.5

Polarization

Vertical

Max Power-W

150

Nominal Impedance-Ω

50

Connector

N(optional)

Antenna Dimension-m

1.2

Weight (kg)

2.0

Work Temperature-°C

-30~60

Rated Wind Velocity-m/s

60

Explain

5 Units

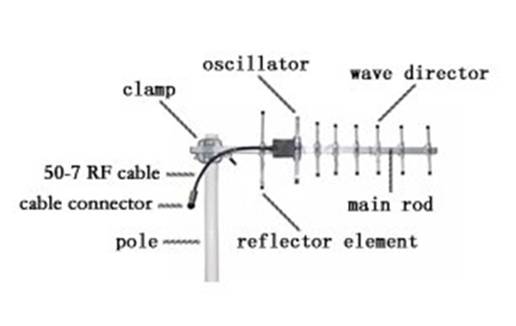

Antenna Erection

1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).

2 Erect the antennas to the pole with clamp according to polarization required.

3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.

4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
