HD av Transmitter for UAV 60km downLink   SG-HD103
Code: SG-HD103
Original: 0.00
Detail


Low Delay Lightweight HD Wireless COFDM Video Transmitter SG-HD103

Such new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support  full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.


Features:

◆ Low delay,lightweight,live broadcast;
Support Full- HD quality image;
Support 1080i/1080P HD transission;
COFDM modulation;

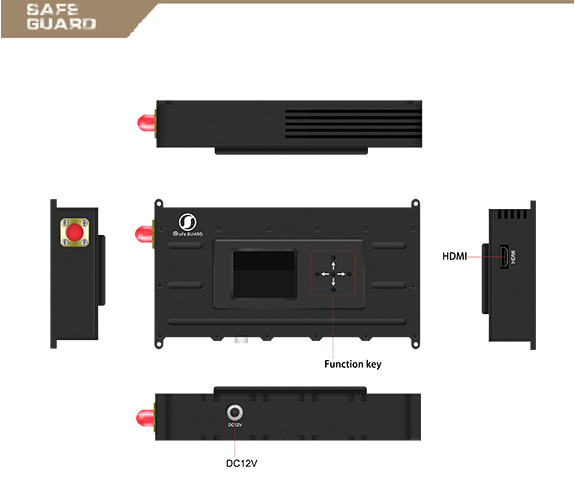

Built-in with HDM or HD-SDI interface(single selection);
All parameters can be adjusted by user;



Specifications

ModelSG-HD103
Working voltageDC12V
Working current≤1.1A@DC12.5V
Video inputBNC / Aviation plug (optiona)
HDMI inputExternal to HD digital video signal, support HD 1080p/720p/576/480
HD-SDI inputExternal to SDI digital video signal, support HD1080p/720p/576/480
Frequency range

300MHz~4.4GHz (optional),

gap 1MHz(Other frequency can be customized)

RF bandwidth2/2.5/4/8MHz
RF output power1-3W adjustable
ModulationCOFDM 2K QPSK
EncryptionAES user-defined

FEC

1/2、2/3、3/4、7/8

Guard interval

1/32、1/16、1/8、1/4

Video resolution720P, 1080i/P@60fps

Video coding

H.264/MPEG-4/MPEG-2

Parameter control mode

Set relevant parameter by LCD FM display panel

RF connector
N-type(50Ω)
Dimension
176*90*30mm
Weight
571g
